Plotting graphs with a consistent style

Plotting graphs with a consistent style

This example shows how to use dictionary unpacking in order to easily use the same visual style across multiple graphs. This is a quick and easy way to quickly share a single visual style across multiple graphs, without having to copy and paste each of the individual attributes over and over again for each graph you plot.

import igraph as ig
import matplotlib.pyplot as plt
import math
import random

# Configure visual style
visual_style = {
    "edge_width": 0.3,
    "vertex_size": 1.5,
    "palette": "heat",
    "layout": "fruchterman_reingold"

# Generate four random graphs
gs = [ig.Graph.Barabasi(n=30, m=1) for i in range(4)]

# Calculate colors between 0-255 for all nodes
betweenness = [g.betweenness() for g in gs]
colors = [[int(i * 255 / max(btw)) for i in btw] for btw in betweenness]

# Plot the graphs, using the same predefined visual style for both
fig, axs = plt.subplots(2, 2)
axs = axs.ravel()
for g, color, ax in zip(gs, colors, axs):
    ig.plot(g, target=ax, vertex_color=color, **visual_style)

The plots looks like this:

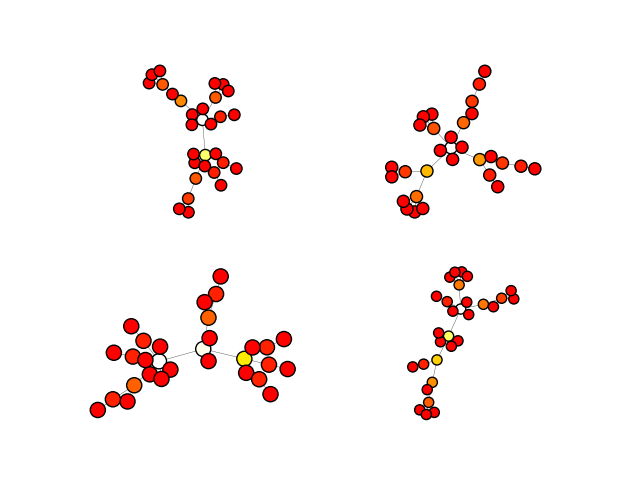

Four graphs plotted using the same palette and layout algorithm

Four graphs using the same palette and layout algorithm.


If you would like to set global defaults, for example, always using the Matplotlib plotting backend, or using a particular color palette by default, you can use igraph’s configuration instance. A quick example on how to use it can be found here: Configuration Instance
